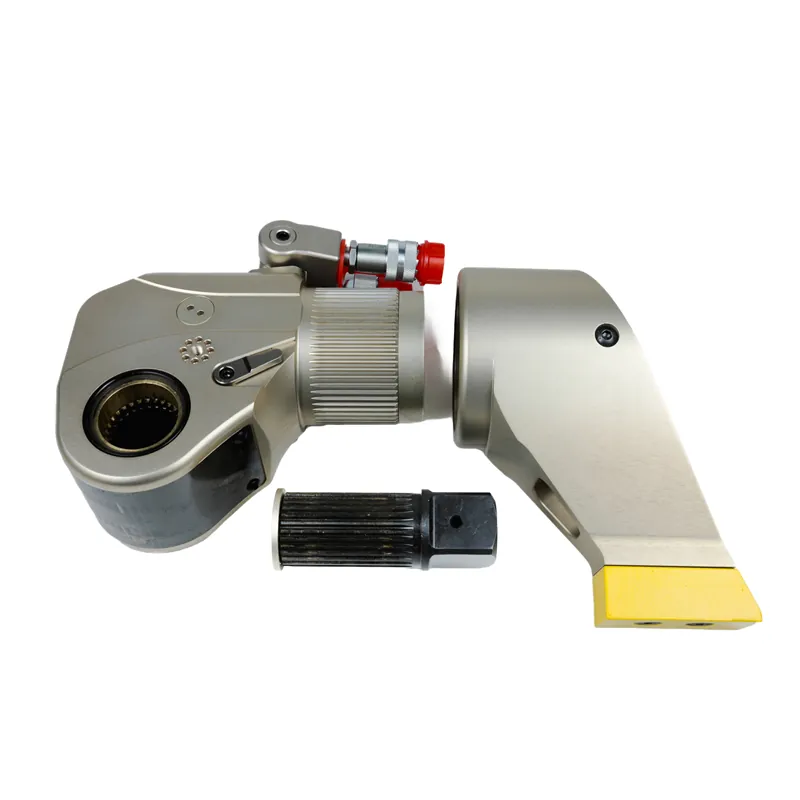

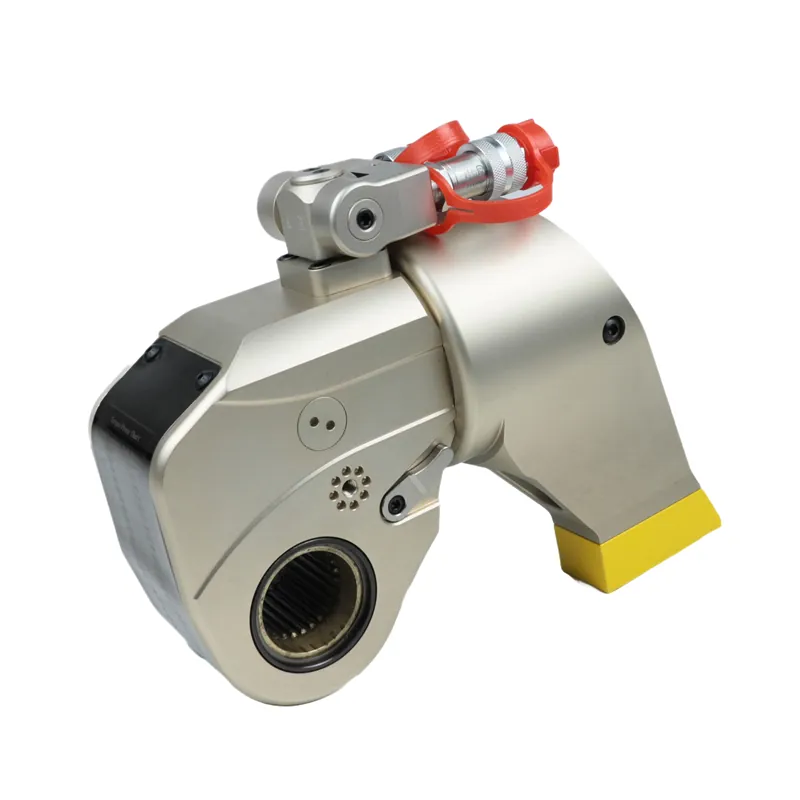

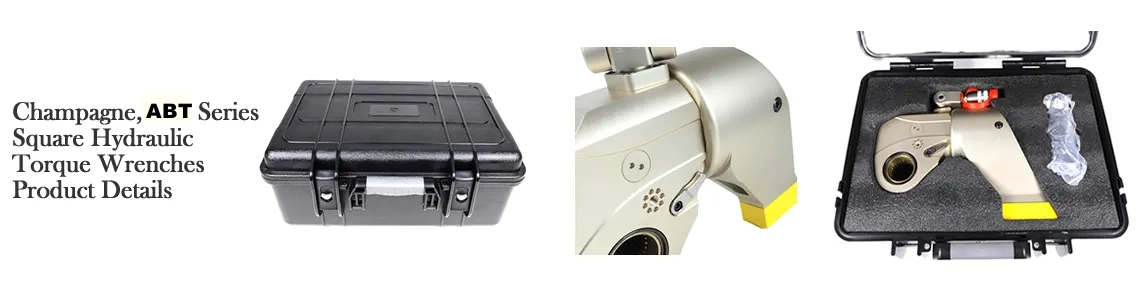

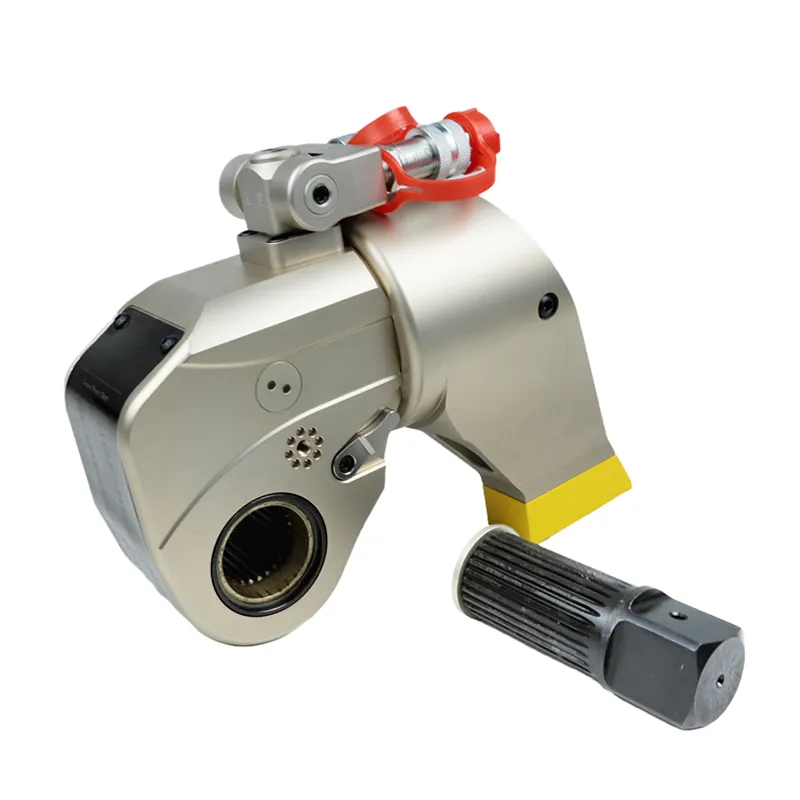

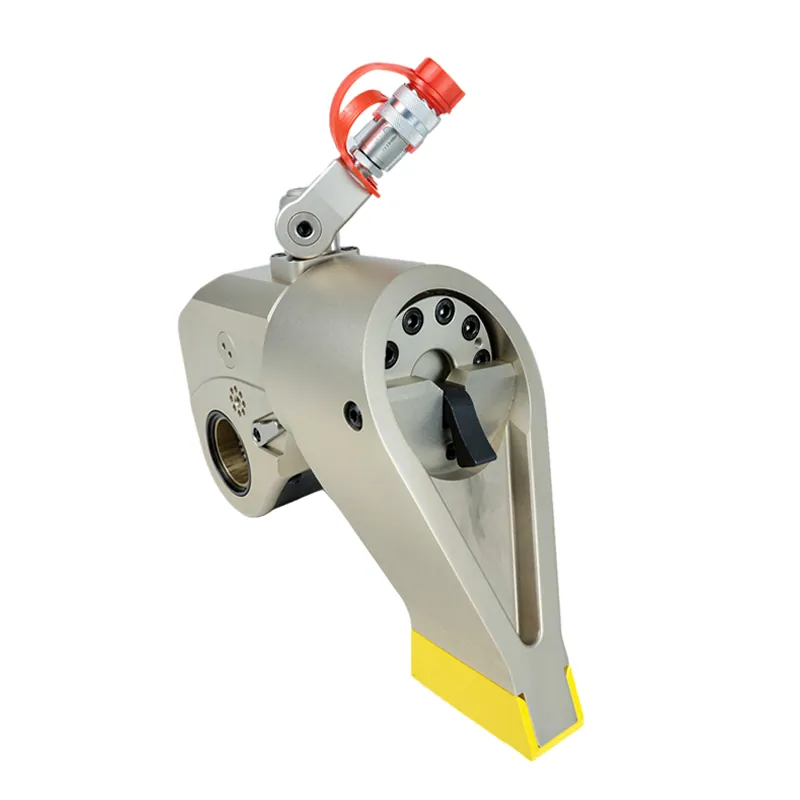

Champagne,ABT Series Square Drive Hydraulic Torque Wrench
-
70MPa maximum working pressure, easy to cope with tough challenges.
Excellent accuracy of ±3% ensures precise operation.
10 models cover a 112N.m to 72000N.m torque range, the most comprehensive in the market.

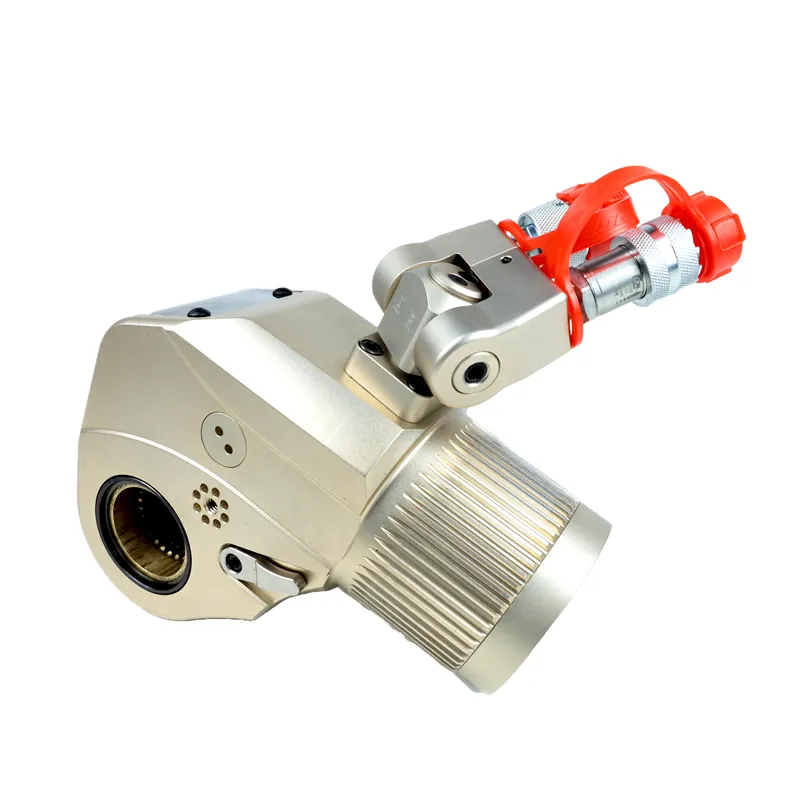

360°x180° free swivel joint, no space limitation, flexible operation.
Square drive adapts to high-strength sockets, applicable to a wide range of bolt types.

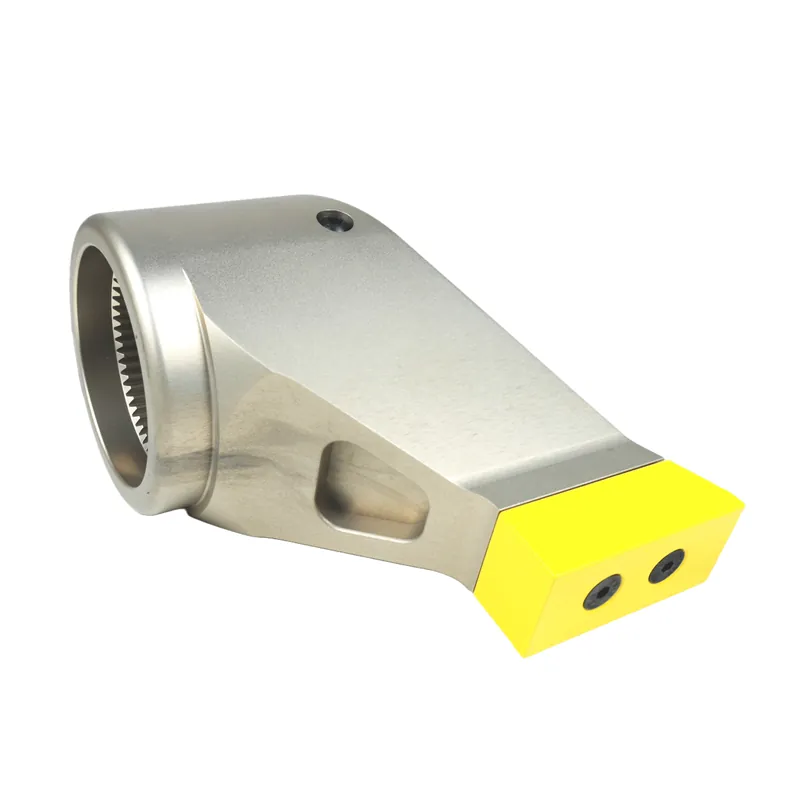

360°adjustable reaction arm, suitable for any support point.
Advanced aluminum titanium alloy material, compact design, high strength, and lightweight.
A new locking connector ensures a smooth flow of oil.
- Red,ABT Series Square Drive Hydraulic Torque Wrench Black,ABT Series Square Drive Hydraulic Torque Wrench ABT Series Square Drive Hydraulic Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Axion's ABT series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s DSX &RSL series,
HYTORC’s MXT & EDGE S series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, and other wrenches in terms of function, quality, and applicable working conditions.
Axion offers a one-year warranty, better prices, and Customized services for special conditions.
Welcome to Get Latest Price now
Dimensions
Model | 07ABT | 1ABT | 3ABT | 5ABT | 8ABT | 10ABT | 15ABT | 20ABT | 25ABT | 35ABT | 50ABT | |
Torque（N.m ） | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2063-20627 | 2666-26664 | 3472-34725 | 4866-48666 | 7200-72000 | |
Bolt size （M ） | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 | |
Weight （Kg） | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 21 | 25 | 31 | 45 | 87 | |
L1 |
| 110.8 | 133.5 | 169 | 202.5 | 216 | 237.5 | 285 | 299.5 | 313 | 361.5 | 400 |
L2 | 139.3 | 185.5 | 242 | 271 | 309 | 340.5 | 395 | 466.5 | 461 | 496.5 | 516 | |
H1 | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 | |
H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 178 | 183 | 200 | 216 | 223 | |
H3 |
| 76.2 | 95.5 | 127 | 149 | 167 | 182 | 200 | 220 | 247 | 282 | 291 |
H4 | 108.1 | 131 | 176.5 | 199 | 216.5 | 231.5 | 250 | 269.5 | 296.5 | 331.5 | 341 | |
R1 |
| 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 66 | 77 | 81 |
R2 | 68.3 | 99 | 134 | 137 | 171 | 174 | 222 | 250.5 | 250.5 | 271 | 259 | |
Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | |
FAQs
Q: What are the different types of hydraulic torque wrenches?
A: There are several types of hydraulic torque wrenches, including:
Single-acting hydraulic torque wrenches: This type of wrench can only be used to tighten nuts or bolts.
Double-acting hydraulic torque wrenches: This type of wrench can be used to tighten and loosen nuts or bolts.
Low-profile hydraulic torque wrenches: This type of wrench is designed for use in tight spaces.
Electric hydraulic torque wrenches: This type of wrench is powered by an electric pump, which can increase productivity.
Q: What are some safety precautions to take when using a hydraulic torque wrench?
A: When using a hydraulic torque wrench, it is important to take the following safety precautions:
Read the instruction manual carefully before use.
Make sure the wrench is in good working condition.
Use the correct size socket.
Operate the wrench at the specified torque value.
Do not overload the wrench.
Clean and maintain the wrench after use.
