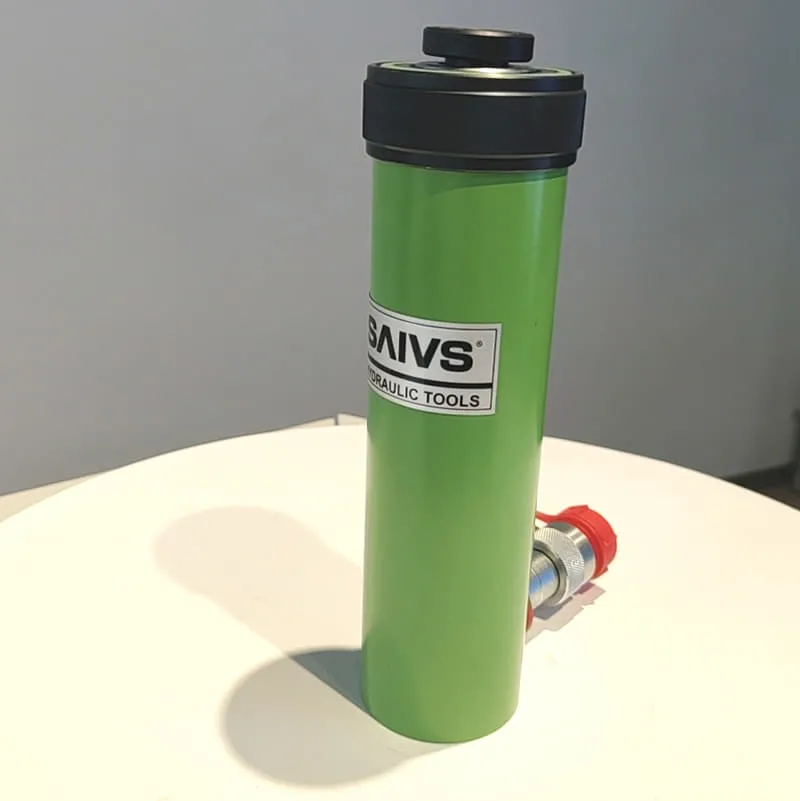

RC Seires Single-Acting Hydraulic Cylinders
-
Model:RC Seires
Capacity: 5-100t
Stroke: 25-362mm
Max.pressure: 700bar/10000psi
Weight:1-72KG
Oil capacity:18 - 3449(cm3)
Minimum Order：1 Piece
Manufacturer:Axion
Country of Origin:China
Customizable with special requirement
Brand Name:Replacement Enerpac's RC Seires
SKU:AXT-19-00273
- RC10010, 100 ton 933 KN, 260 mm 10.24 in Stroke, General Purpose Hydraulic CylinderRC1006, 100 ton 933 KN, 168 mm 6.61 in Stroke, General Purpose Hydraulic CylinderRC7513, 75 ton 718 KN, 333 mm 13.11 in Stroke, General Purpose Hydraulic CylinderRC756, 75 ton 718 KN, 156 mm 6.14 in Stroke, General Purpose Hydraulic CylinderRC5013, 50 ton 498 KN, 337 mm 13.27 in Stroke, General Purpose Hydraulic CylinderRC506, 50 ton 498 KN, 159 mm 6.26 in Stroke, General Purpose Hydraulic CylinderRC504, 50 ton 498 KN, 101 mm 3.98 in Stroke, General Purpose Hydraulic CylinderRC502, 50 ton 498 KN, 51 mm 2.01 in Stroke, General Purpose Hydraulic CylinderRC3012, 30 ton 295 KN, 300 mm 11.81 in Stroke, General Purpose Hydraulic CylinderRC308, 30 ton 295 KN, 209 mm 8.23 in Stroke, General Purpose Hydraulic CylinderRC304, 30 ton 295 KN, 100 mm 3.94 in Stroke, General Purpose Hydraulic CylinderRC302, 30 ton 295 KN, 50 mm 1.97 in Stroke, General Purpose Hydraulic CylinderRC2514, 25 ton 232 KN, 362 mm 14.25 in Stroke, General Purpose Hydraulic CylinderRC2512, 25 ton 232 KN, 311 mm 12.24 in Stroke, General Purpose Hydraulic CylinderRC2510, 25 ton 232 KN, 261 mm 10.28 in Stroke, General Purpose Hydraulic CylinderRC258, 25 ton 232 KN, 210 mm 8.27 in Stroke, General Purpose Hydraulic CylinderRC256, 25 ton 232 KN, 158 mm 6.22 in Stroke, General Purpose Hydraulic CylinderRC254, 25 ton 232 KN, 102 mm 4.02 in Stroke, General Purpose Hydraulic CylinderRC252, 25 ton 232 KN, 50 mm 1.97 in Stroke, General Purpose Hydraulic CylinderRC251, 25 ton 232 KN, 26 mm 1.02 in Stroke, General Purpose Hydraulic CylinderRC1514, 15 ton 142 KN, 356 mm 14.02 in Stroke, General Purpose Hydraulic CylinderRC1512, 15 ton 142 KN, 305 mm 12.01 in Stroke, General Purpose Hydraulic CylinderRC1510, 15 ton 142 KN, 254 mm 10.00 in Stroke, General Purpose Hydraulic CylinderRC158, 15 ton 142 KN, 203 mm 7.99 in Stroke, General Purpose Hydraulic CylinderRC156, 15 ton 142 KN, 152 mm 5.98 in Stroke, General Purpose Hydraulic CylinderRC154, 15 ton 142 KN, 101 mm 3.98 in Stroke, General Purpose Hydraulic CylinderRC152, 15 ton 142 KN, 51 mm 2.01 in Stroke, General Purpose Hydraulic CylinderRC151, 15 ton 142 KN, 25 mm 0.98 in Stroke, General Purpose Hydraulic CylinderRC1014, 10 ton 101 KN, 356 mm 14.02 in Stroke, General Purpose Hydraulic CylinderRC1012, 10 ton 101 KN, 304 mm 11.97 in Stroke, General Purpose Hydraulic CylinderRC1010, 10 ton 101 KN, 257 mm 10.12 in Stroke, General Purpose Hydraulic CylinderRC108, 10 ton 101 KN, 203 mm 7.99 in Stroke, General Purpose Hydraulic CylinderRC106, 10 ton 101 KN, 156 mm 6.14 in Stroke, General Purpose Hydraulic CylinderRC104, 10 ton 101 KN, 105 mm 4.13 in Stroke, General Purpose Hydraulic CylinderRC102, 10 ton 101 KN, 54 mm 2.13 in Stroke, General Purpose Hydraulic CylinderRC Seires Single-Acting Hydraulic Cylinders
Description
Model:RC Seires
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement

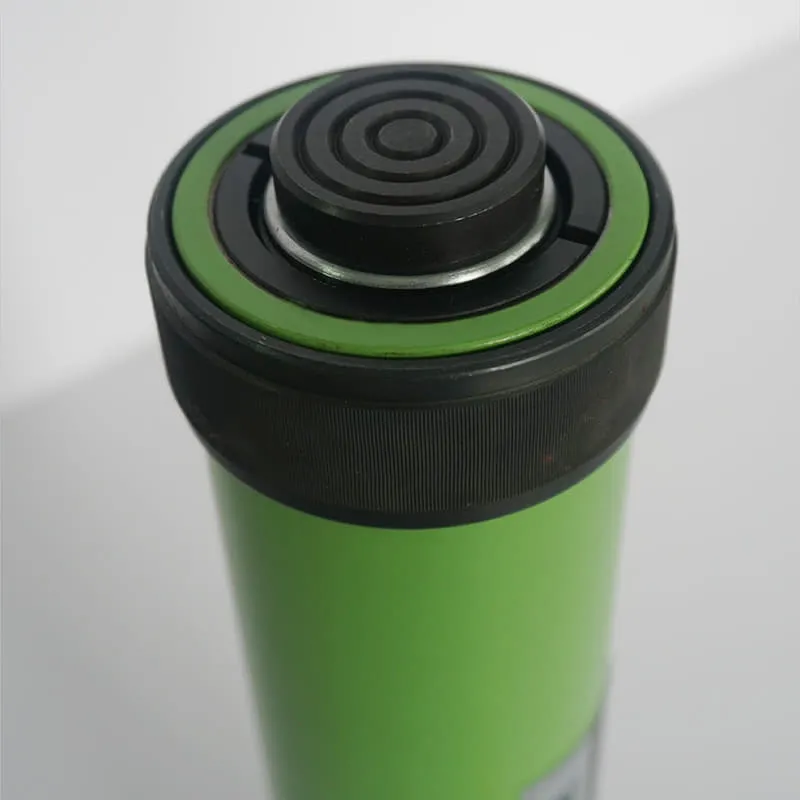

Single-acting, high strength spring return, easy to use.

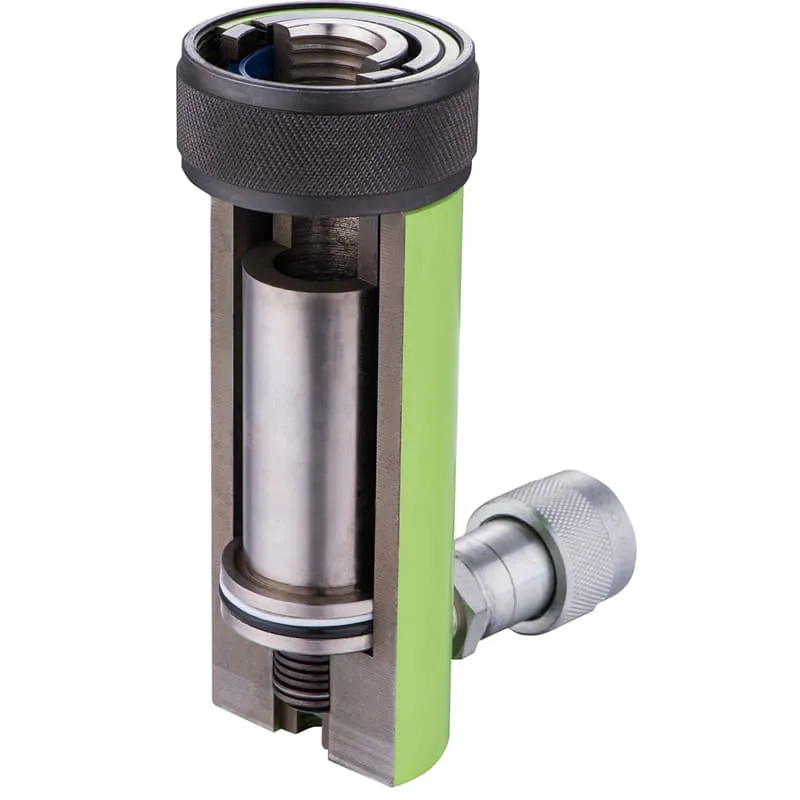

The exclusive guide Ring is designed absorbs eccentric loading without galling cylinder parts,reduces wear and extending life.
Special painted surface to increase corrosion resistance.
Easy fixturing with collar threads,plunger threads and base mounting holes.
All models include NPT3/8"-18 quick coupling and dust cap.
Removable hardened grooved saddles.
Customizable with special requirement.
Single-acting Hydraulic Cylinder, Hydraulic Jack, Hydraulic Ram, Single-acting Hollow Plunger Hydraulic Cylinder
Single-acting Low Height hydraulic cylinders Jack
Hydraulic Cylinders Lift Jack
Single-acting Hydraulic Cylinder all Positions

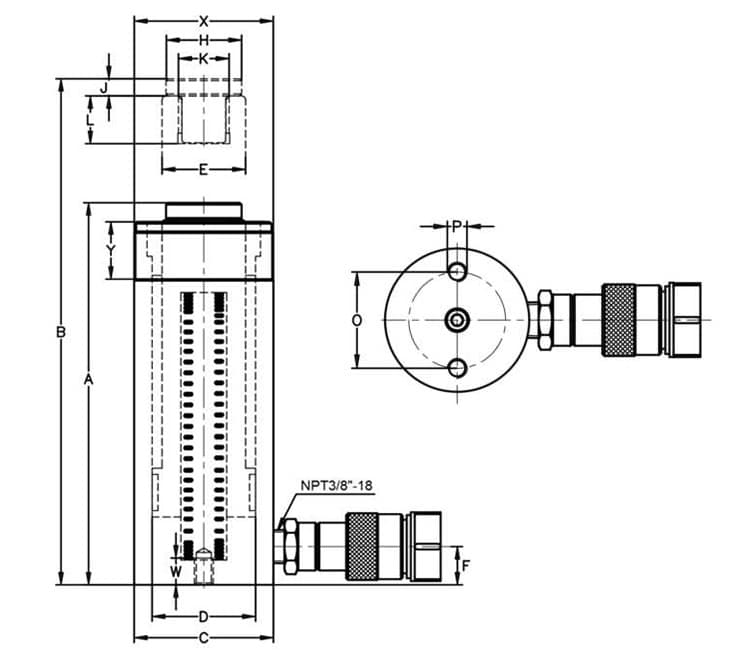

Dimensions
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Protr. from Plgr. | Plunger Internal Thread | Plunger Thread Length | Base Mounting Holes | Collar Thread | Collar Thread Length | Weight | ||
| Bolt Circle | Thread | Thd. Depth | ||||||||||||||||||
| A | B | C | D | E | F | H | J | K | L | O | P | W | X | Y | ||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||||
| 5(45) | 25 | RC-51 | 7 | 18 | 110 | 135 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 1 |
| 76 | RC-53 | 7 | 54 | 165 | 241 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 1.6 | |
| 127 | RC-55 | 7 | 90 | 215 | 342 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 2 | |
| 177 | RC-57 | 7 | 125 | 273 | 450 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 2.6 | |
| 232 | RC-59 | 7 | 164 | 323 | 555 | 40 | 30 | 25 | 22 | 25 | 6 | 3/4"-16UN | 14 | 25 | 1/4"-20UN | 6 | 11/2"-16 | 28 | 3.1 | |
| 10(101) | 54 | RC-102 | 15.9 | 86 | 121 | 175 | 59 | 45 | 35 | 19 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 2.3 |
| 105 | RC-104 | 15.9 | 167 | 171 | 276 | 59 | 45 | 35 | 19 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 3 | |
| 156 | RC-106 | 15.9 | 248 | 247 | 403 | 59 | 45 | 35 | 20 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 4.1 | |
| 203 | RC-108 | 15.9 | 323 | 298 | 501 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 5.8 | |
| 257 | RC-1010 | 15.9 | 409 | 349 | 606 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 6.6 | |
| 304 | RC-1012 | 15.9 | 483 | 400 | 707 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 7.5 | |
| 356 | RC-1014 | 15.9 | 566 | 450 | 806 | 59 | 45 | 35 | 22 | 35 | 6 | 1"-8UN | 19 | 39 | 5/16"-18UN | 12 | 21/4"-14 | 28 | 8.3 | |
| 15(142) | 25 | RC-151 | 21.2 | 53 | 124 | 149 | 70 | 52 | 42 | 20 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 3.5 |
| 51 | RC-152 | 21.2 | 108 | 149 | 200 | 70 | 52 | 42 | 20 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 4 | |
| 101 | RC-154 | 21.2 | 214 | 200 | 301 | 70 | 52 | 42 | 20 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 5 | |
| 152 | RC-156 | 21.2 | 323 | 271 | 423 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 7 | |
| 203 | RC-158 | 21.2 | 431 | 322 | 525 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 8 | |
| 254 | RC-1510 | 21.2 | 539 | 373 | 627 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 9 | |
| 305 | RC-1512 | 21.2 | 647 | 423 | 728 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 10 | |
| 356 | RC-1514 | 21.2 | 756 | 474 | 830 | 70 | 52 | 42 | 25 | 38 | 9 | 1"-8UN | 25 | 47 | 3/8"-16UN | 12 | 23/4"-16 | 30 | 11 | |
| 25(232) | 26 | RC-251 | 33.2 | 86 | 139 | 165 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 6 |
| 50 | RC-252 | 33.2 | 166 | 165 | 215 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 7 | |
| 102 | RC-254 | 33.2 | 338 | 215 | 317 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 8 | |
| 158 | RC-256 | 33.2 | 524 | 273 | 431 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 10 | |
| 210 | RC-258 | 33.2 | 696 | 323 | 533 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 12 | |
| 261 | RC-2510 | 33.2 | 866 | 374 | 635 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 14 | |
| 311 | RC-2512 | 33.2 | 1031 | 425 | 736 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 15 | |
| 362 | RC-2514 | 33.2 | 1201 | 476 | 838 | 85 | 65 | 56 | 25 | 50 | 10 | 11/2"-16UN | 25 | 58 | 1/2"-13UN | 19 | 35/16"-12 | 49 | 17 | |
| 30(295) | 50 | RC-302 | 41.8 | 209 | 228 | 278 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 13 |
| 100 | RC-304 | 41.8 | 418 | 278 | 378 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 16 | |
| 209 | RC-308 | 41.8 | 874 | 387 | 596 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 19 | |
| 300 | RC-3012 | 41.8 | 1255 | 478 | 778 | 101 | 73 | 60 | 36 | 50 | 10 | 11/2"-16UN | 25 | 70 | 1/2"-13UN | 19 | 37/8"-12 | 49 | 27 | |
| 50(498) | 51 | RC-502 | 70.8 | 361 | 176 | 227 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 15 |
| 101 | RC-504 | 70.8 | 716 | 227 | 328 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 19 | |
| 159 | RC-506 | 70.8 | 1126 | 282 | 441 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 23 | |
| 337 | RC-5013 | 70.8 | 2388 | 460 | 797 | 127 | 95 | 80 | 33 | \ | \ | \ | \ | 95 | 1/2"-13UN | 18 | 5"-12 | 55 | 37 | |
| 75(718) | 156 | RC-756 | 103.8 | 1620 | 285 | 441 | 150 | 115 | 100 | 41 | \ | \ | \ | \ | 110 | 1/2"-13UN | 15 | 53/4"-12 | 44 | 33 |
| 333 | RC-7513 | 103.8 | 3457 | 492 | 825 | 150 | 115 | 100 | 41 | \ | \ | \ | \ | 110 | 1/2"-13UN | 15 | 53/4"-12 | 44 | 54 | |
| 100(933) | 168 | RC-1006 | 132.7 | 2229 | 357 | 525 | 177 | 130 | 112 | 41 | \ | \ | \ | \ | 139 | 3/4"-10UN | 25 | 67/8"-12 | 44 | 59 |
| 260 | RC-10010 | 132.7 | 3449 | 449 | 709 | 177 | 130 | 112 | 41 | \ | \ | \ | \ | 139 | 3/4"-10UN | 25 | 67/8"-12 | 44 | 72 | |

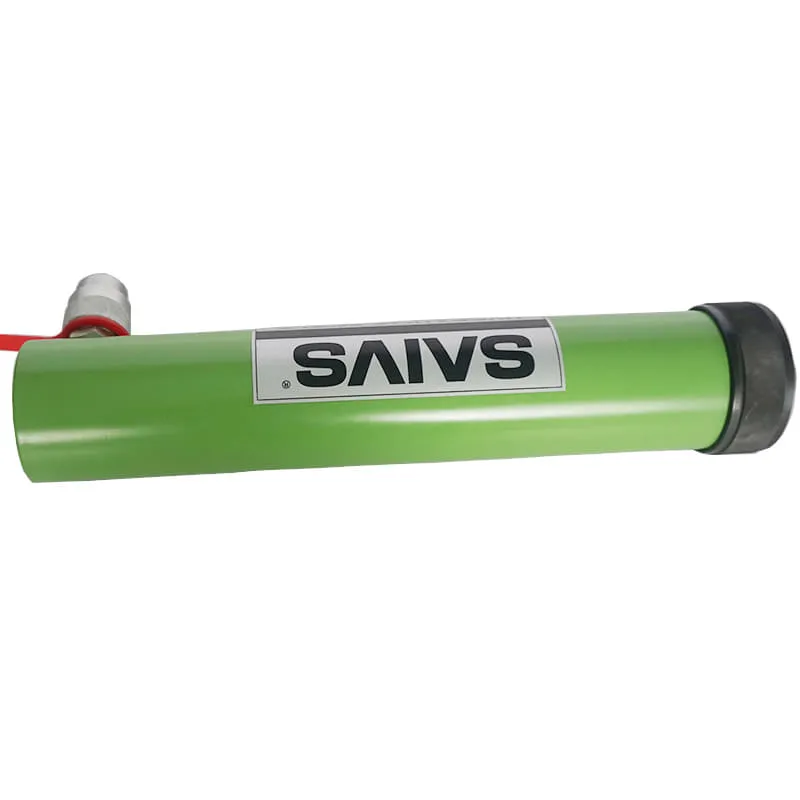

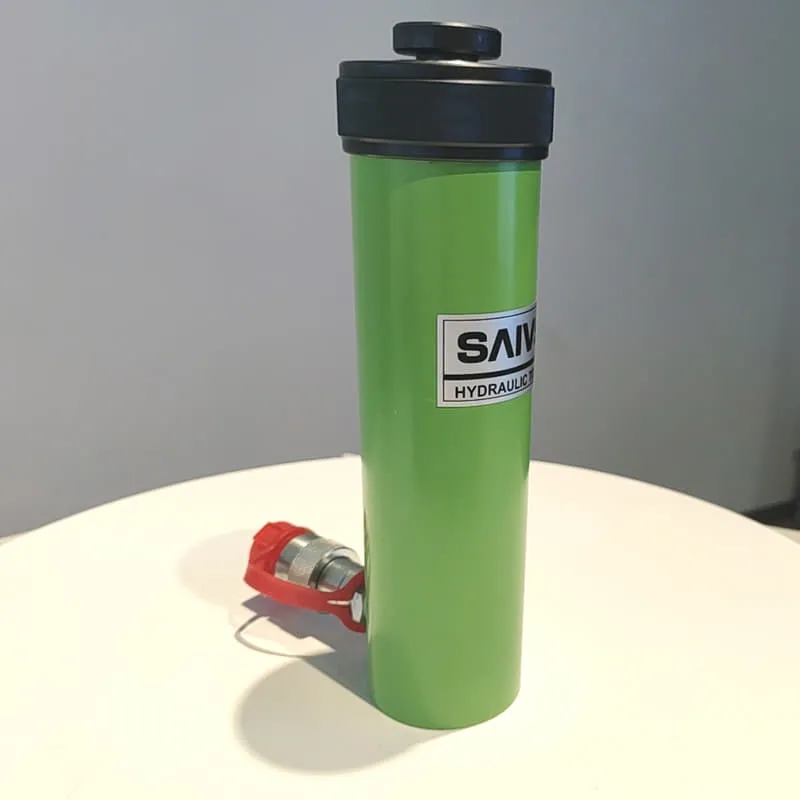

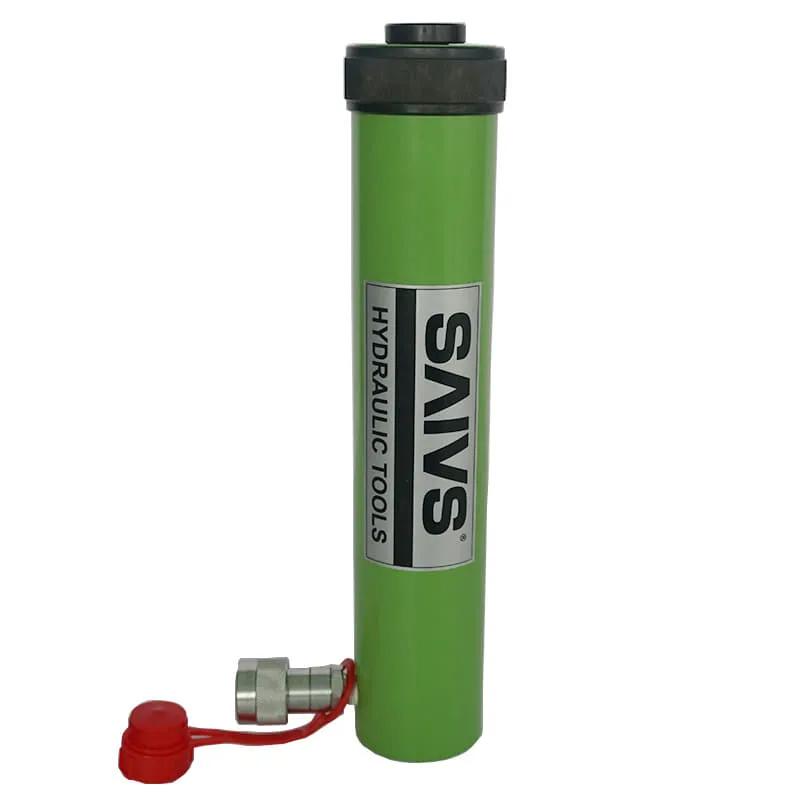

Image Gallery
Application
Construction equipment often requires precise positioning for maintenance and repair tasks, and hydraulic cylinder jacks provide the necessary lifting capability.
These jacks help support and position critical structural elements during construction, ensuring proper alignment and safety.
Hydraulic cylinder jacks are used to position bridge sections and beams during construction, allowing for accurate alignment and secure installation.
Welders use hydraulic cylinder jacksto accurately position heavy workpieces for welding tasks, ensuring precision and safety.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Hydraulic cylinder jacksare used to support and level drilling rigs during setup and maintenance in the oil and gas industry.
Hydraulic cylinder jacks are employed to lift and level portable structures like cabins and modular buildings.
Comment
PROVIDING EXCELLENT SOLUTIONS BY Axion™
You're fortunate to have found a manufacturer, supplier, and factory in China, Ningbo Axion Machinery Co., Ltd.,
that offers a diverse selection, reasonable price,fast delivery, and products of comparable quality and performance to Enerpac's RC Seires Single-Acting Hydraulic Cylinders.
Please send an email immediately with information regarding the "RC Seires Single-Acting Hydraulic Cylinders" You will receive our response within 24 hours.
